PS1-4-0-65K

84,8x177,1x48,4

100 kA

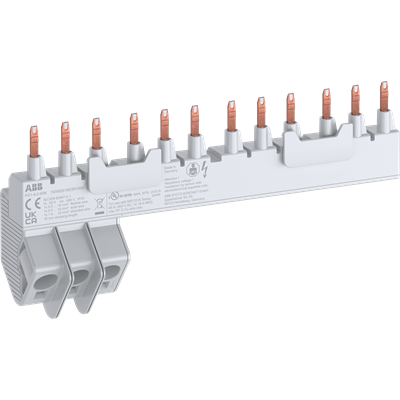

PS1-4-0-65K 3-phase busbar enables an easy and fast parallel connection of 4x MS132-K manual motor starters without the need of any tools by simply pushing the busbar into the terminals. The feeder block is intergated into the busbar, optimizing logistics and planning by reducing the amount of needed parts. The rated current is 65 A. PS1-K busbars are certified for UL Type E and Type F applications.

In conformità alla direttiva UE 2011/65/UE e all'emendamento 2015/863 22 luglio 2019

3

IP20

Circuito principale 600 V CA

IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1

3

3

0,139 kg

IEC, UL

In funzione -25 ... +70 °C

In magazzino -50 ... +80 °C

6 kV

690 V CA

250 V CC

Sbarra a 3 fasi

PS1 K
