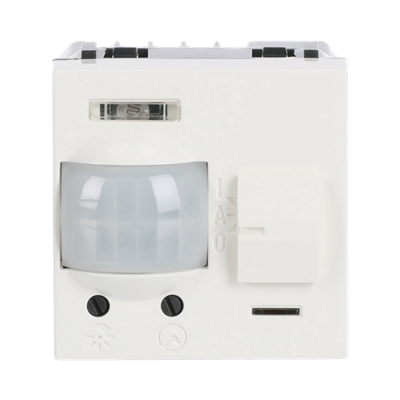

N2241 BL

44x44x40

15 °

Bianco

Color: White.

Rated voltage: 127 - 230 Vac ± 10% / 50 - 60 Hz

Outputs: 1 Normally Open (NO). Potential free

Max. power:

- Incandescent: 1.800W @230Vac / 1.000W @127Vac

- Halogen with electronic o ferromagnetic transformer: 750VA @230Vac / 400VA @127Vac

- Fluorescent lamps or motors: 400VA @230Vac / 200VA @127Vac

For automatic switching of devices dependent on motion and brightness.

With integrated selector switch for ON-AUTOMATIC-OFF in the front side.

Switch-off delay: 10 sec to 10 min or short-time pulse 1 sec adjustable (from the front side).

Detection range: 5 m radious

Adjustable light set point level for activation (from the front side).

Detection angle: 110 °

Mounting height: 1,2 m

Auxiliary control with N2X04.X push-buttons

Temperature range (Device): -10 °C to 40 °C

Size: 2 modules.

In conformità alla direttiva UE 2011/65/UE e all'emendamento 2015/863 22 luglio 2019

IP20

5 m

-10...40 °C

Plastica, termoplastica

0,1 kg

3, 8 A

In funzione -5 ... +35 °C

10 s

230 V

Montaggio ad incasso
