PS1-5-1-65K BARRE COLL. X 5 MS132K + 1 AUX
Codice: 1SAM301903R1015
Codice Metel: PS1-5-1-65K
Per informazioni tecniche chiamaci al numero 02 2415 1515
Attivo tutti i giorni da lunedì al sabato dalle ore 9:00 alle ore 19:00
84,8x258,3x48,4
100 kA

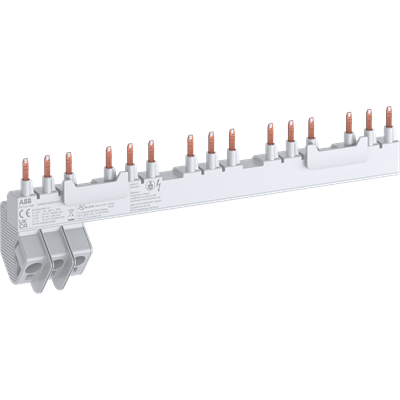

PS1-5-1-65K 3-phase busbar enables an easy and fast parallel connection of 5x MS132-K manual motor starters + 1 lateral aux.contact without the need of any tools by simply pushing the busbar into the terminals. The feeder block is intergated into the busbar, optimizing logistics and planning by reducing the amount of needed parts. The rated current is 65 A. PS1-K busbars are certified for UL Type E and Type F applications.
In conformità alla direttiva UE 2011/65/UE e all'emendamento 2015/863 22 luglio 2019
3
IP20
Circuito principale 600 V CA
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1
3
3
0,177 kg
IEC, UL
In funzione -25 ... +70 °C
In magazzino -50 ... +80 °C
6 kV
690 V CA
250 V CC
PS1 K
