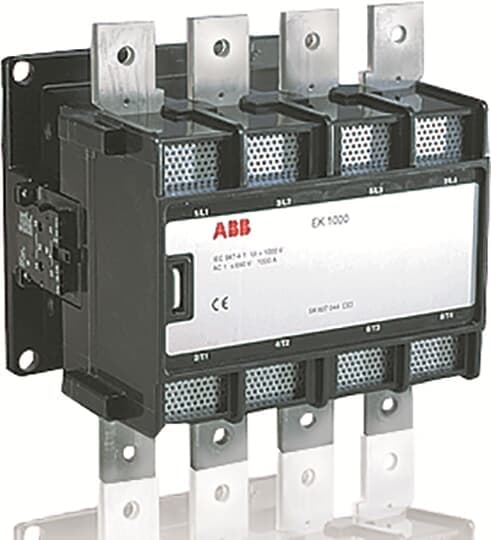

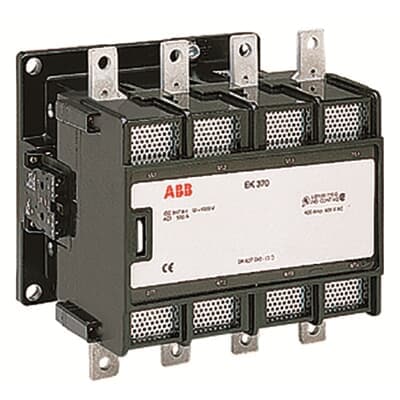

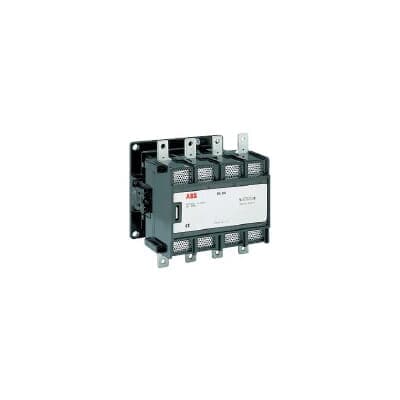

SK828100-EM

272x270x225,5

At 40 °C ambient temp, in free air, from a cold state 10 s, 6400 A

At 40 °C ambient temp, in free air, from a cold state 15 min, 1200 A

At 40 °C ambient temp, in free air, from a cold state 1 min, 3400 A

At 40 °C ambient temp, in free air, from a cold state 1 s, 6800 A

At 40 °C ambient temp, in free air, from a cold state 30 s 4400 A

1000 V 40 °C 1000 A

1000 V 60 °C 800 A

1000 V 70 °C 720 A

690 V 40 °C 1000 A

690 V 55 °C 800 A

690 V 60 °C 800 A

690 V 70 °C 720 A

Secondo IEC 60947-4-1, contattori aperti q = 40 °C 1000 A

Contattori oltre 100A-Contattori quadripolari AF09…AF370 e EK550..EK1000-1000 A (AC-1 690 V)

5 milione

Secondo IEC 60529, IEC 60947-1, EN 60529 bobine IP20

Without derating 3000 m

AC-1 300 cicli orari

1

1

4

0

4

A condizioni operative nominali per polo 80 W

15,8 kg

Close to contactor fitted with thermal O/L relay 0.85 ... 1.1 Uc -25 ... 55 °C

Close to contactor without thermal O/L relay 0.85 ... 1.1 Uc -40 ... 70 °C

Close to contactor for storage -50 ... 70 °C

8 kV

Funzionamento in CD 110 V

Circuito principale 1000 V

Secondo IEC 60947-4-1 e VDE 0110 Gr. C 1000 V

Barre

EK1000
