MCRI022ATD

48x45x68

Circuito ausiliare 0.8 ... 1.0 N·m

Control circuit 0.8 N·m

Circuito ausiliare 10 A

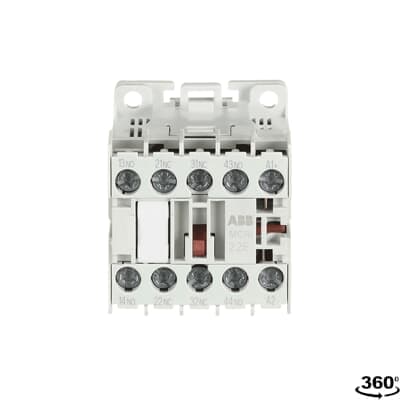

The MCRI022ATD mini contactor relay is a dimension optimized 4 pole contactor relay with screw terminals. This device is a great solution when high performances are needed but the space is limited. Mini contactors are used in residential buldings, commercial buildings and industrial applications for switching of control signals up to 6 A / 240 V (AC-15). Thanks to the very low energy consumption coil, this product can be directly controlled by a PLC.The product is suitable for wall or rail mounting.

In conformità alla direttiva UE 2011/65/UE e all'emendamento 2015/863 22 luglio 2019

10000000 cicli

Circuito ausiliario 50 Hz

Circuito ausiliario 60 Hz

Circuito ausiliario DC

Circuito di controllo DC

Terminali del circuito ausiliario IP20

Terminali del circuito di controllo IP20

Terminali del circuito principale IP20

3000 m

AC-15 360 cicli orari

DC-13 360 cicli orari

600 V CA

IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-5-1

2

2

0

0

0

A condizioni operative nominali per polo 0,4 W

0,235 kg

IEC, UL

-40 ... +70 °C

Circuito ausiliario 6 kV

24 V CC

Circuito ausiliario 690 V CA

Circuito ausiliario 440 V CC

750 V

Guida DIN, Vite

Terminali a vite

MCR
