S752DRK32
S752

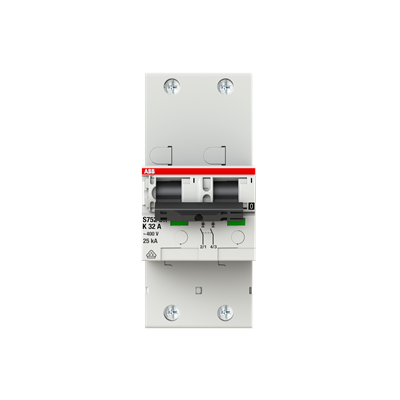

S752DR-K32 INTERRUTTORE AUTOMATICOSEL.2P
Codice: 2CDH782010R0537
Codice Metel: S752DRK32
Per informazioni tecniche chiamaci al numero 02 2415 1515
Attivo tutti i giorni da lunedì al sabato dalle ore 9:00 alle ore 19:00
Caratteristiche tecniche
K (Selective)
32 A
Selective main circuit-breakers of the S 750 DR series are SMCBs based on DIN VDE 0641-21 with voltage-independent operating principle. This means that they do not rely on a control circuit to make or break contact (SHU) and are therefore particularly suitable for use in energy distributionsystems with maximum availability requirements. They offer total selectivity to downstream MCBs and outstanding selectivity to upstream protective devices due to unique current limiting selectivity.
54x130x96
50 / 60 Hz
IEC/EN 60947-2
2
700 g
400 V AC - 25kA
400 V AC - 25 kA
400
