62851 U-WL-500

43,8x48x23

No

Grigio / Antracite

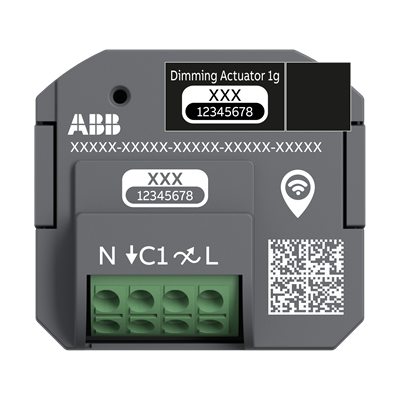

Flush mounted actuator wireless for switching and dimming of lighting systems.

Operation in ABB-flexTronics® wireless (device control) or networking of up to 32 devices (room con-trol).

Integration in ABB-free@home® wireless with System Access Point up to 150 devices.

2-wire connection (neutral conductor not required).

Neutral conductor optionally connectable (recommended for the connection of low loads < 3 W/VA). With plug clamps.

With extension input.

Operation also possible via conventional push buttons.

Remote operation via Bluetooth and smartphone/tablet app.

Programming via Bluetooth with the ABB-free@home® Next App or the web interface of the System Access Point.

Optimised for dimming of retrofit LED lamps (LEDi).

For dimmable Retrofit-LEDs (LEDi).

For dimmable Retrofit-LEDs (LEDi) with conventional or electronic transformers.

For incandescent lamps, 230 V tungsten halogen lamps, low-voltage halogen lamps with conventional or electronic transformers and dimmable energy-saving halogen lamps.

Mix operaton of LEDi with conventional loads possible.

With manually adjustable operating mode: trailing / leading edge control.

With adjustable minimum brightness.

Low-noise level by MOSFET transistors.

With electronic short-circuit protection.

With electronic overload protection.

50 Hz

Controllo luce/carico, controllo wireless

IP20

230 V

1

1

0,4 W

20,745 g

In funzione -25 ... +55 °C

230 V

Retrofit universale e LED, LEDi, lampada a incandescenza, lampada alogena, alta tensione, lampada alogena, bassa tensione

Montaggio ad incasso

Terminali senza viti
