F3C-AR230 C 2-300

F3C

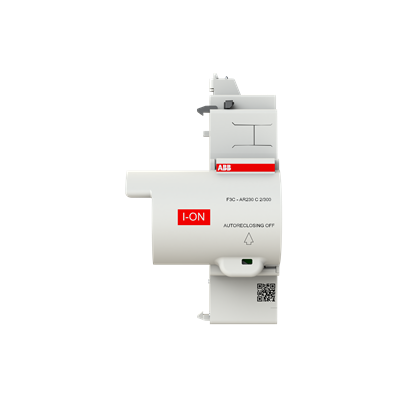

F3C-AR230 C 2/300 Autoreclosing unit with system check

Codice: 2CSF202998R0035
Codice Metel: F3C-AR230 C 2-300

Per informazioni tecniche chiamaci al numero 02 2415 1515
Attivo tutti i giorni da lunedì al sabato dalle ore 9:00 alle ore 19:00

Caratteristiche tecniche

  • 104,15x81,5x58,3

  • 0,4 N·m

  • Auto-reclosing AR C units are used to automatically operate the reclosing of the associated device in case of unwanted tripping only after having checked that

    there are no effective faults in the protected system. Suitable for 2P F200 RCCBs, 300 mA, up to 100A (or 63 A in case of B type)

  • 2

  • IP40, IP20

  • IEC63024

  • 130 gr

  • -25 …+60 °C

  • 230 … 240 V

  • 230-240 V AC

  • V

  • Connessione plug-in

Carico prodotti dai venditori...

Varianti

F3C-AR230 C 4-300

F3C-AR230 C 4-300

F3C-AR230 C 4/300 Autoreclosing unit with system check
F3C-AR230 C 4-30

F3C-AR230 C 4-30

F3C-AR230 C 4/30 Autoreclosing unit with system check
