MC2C310ATD

48x45x68

Circuito ausiliare 0.8 ... 1.0 N·m

Circuito di controllo 0.8 N·m

Circuito principale 0.8 ... 1.0 N·m

At 40 °C ambient temp, in free air, from a cold state 10 s 96 A

690 V 55 °C 20 A

690 V 70 °C 16 A

230 V 55 °C 20 A

230 V 70 °C 16 A

400 V 55 °C 20 A

400 V 70 °C 16 A

500 V 55 °C 20 A

500 V 70 °C 16 A

230 V 55°C 12 A

400 V 55 °C 12 A

500 V 55 °C 10 A

690 V NO 55°C 5 A

230 V three phase 3 kW

400 V tre fasi 5.5 kW

500 V three phase 5.5 kW

690 V three phase, NO 4 kW

Circuito ausiliare 10 A

Circuito principale 20 A

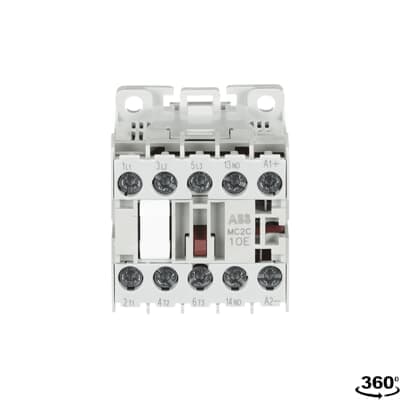

The MC2C310ATD mini contactor is a dimension optimized 3 pole contactor with 1 NO auxiliary contact and screw terminals. This device is a great solution when high performances are needed but the space is limited. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. The product is suitable for wall or rail mounting.

In conformità alla direttiva UE 2011/65/UE e all'emendamento 2015/863 22 luglio 2019

10000000 cicli

Circuito ausiliario 50 Hz

Circuito ausiliario 60 Hz

Circuito ausiliario DC

Circuito di controllo DC

Circuito principale 50 Hz

Circuito principale 60 Hz

Circuito principale DC

Terminali del circuito ausiliario IP20

Terminali del circuito di controllo IP20

Terminali del circuito principale IP20

3000 m

AC-1 300 cicli orari

AC-15 360 cicli orari

AC-3 1200 cicli orari

DC-1 600 cicli orari

DC-13 360 cicli orari

DC-3 600 cicli orari

600 V CA

IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1, UL 60947-5-1

1

0

3

0

3

A condizioni operative nominali AC-1 per polo 0,7 W

0,25 kg

IEC, UL

-40 ... +70 °C

Circuito ausiliario 6 kV

Circuito principale 6 kV

24 V CC

Circuito ausiliario 690 V CA

Circuito ausiliario 440 V CC

Circuito principale 690 V CA

Circuito principale 440 V CC

750 V

Montaggio a filo, guida DIN, vite

Terminali a vite

MC2
