MC1K400ATD

48x45x68

Control circuit 0.8 N·m

Circuito principale 0.8 ... 1.0 N·m

At 40 °C ambient temp, in free air, from a cold state 10 s 72 A

690 V 55 °C 20 A

690 V 70 °C 16 A

230 V 55 °C 20 A

230 V 70 °C 16 A

400 V 55 °C 20 A

400 V 70 °C 16 A

500 V 55 °C 20 A

500 V 70 °C 16 A

230 V 55°C 9 A

400 V 55 °C 9 A

500 V 55 °C 8 A

690 V NO 55°C 5 A

230 V three phase 2.2 kW

400 V tre fasi 4 kW

500 V three phase 4 kW

690 V three phase, NO 4 kW

Circuito principale 20 A

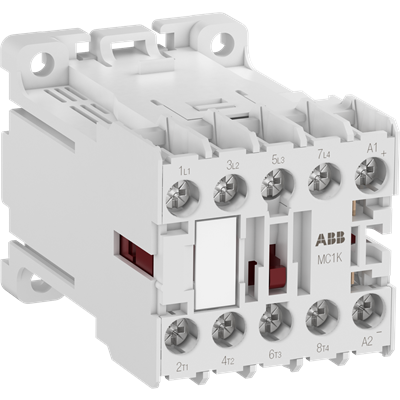

The MC1K400ATD mini contactor is a dimension optimized 4 pole contactor with screw terminals. This device is a great solution when high performances are needed but the space is limited. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Thanks to the very low energy consumption coil, this product can be directly controlled by a PLC.The product is suitable for wall or rail mounting.

In conformità alla direttiva UE 2011/65/UE e all'emendamento 2015/863 22 luglio 2019

10000000 cicli

Circuito di controllo DC

Circuito principale 50 Hz

Circuito principale 60 Hz

Circuito principale DC

Terminali del circuito di controllo IP20

Terminali del circuito principale IP20

3000 m

AC-1 300 cicli orari

AC-15 360 cicli orari

AC-3 1200 cicli orari

DC-1 600 cicli orari

DC-13 360 cicli orari

DC-3 600 cicli orari

600 V CA

IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1

0

0

4

0

4

A condizioni operative nominali AC-1 per polo 0,7 W

0,25 kg

IEC, UL

-40 ... +70 °C

Circuito principale 6 kV

24 V CC

Circuito principale 690 V CA

Circuito principale 440 V CC

750 V

Guida DIN, Vite

Terminali a vite

MC1
