MC1C400ATWL

48x45x68

Circuito di controllo 0.8 N·m

Circuito principale 0.8 ... 1.0 N·m

At 40 °C ambient temp, in free air, from a cold state 10 s 72 A

690 V 55 °C 20 A

690 V 70 °C 16 A

230 V 55 °C 20 A

230 V 70 °C 16 A

400 V 55 °C 20 A

400 V 70 °C 16 A

500 V 55 °C 20 A

500 V 70 °C 16 A

230 V 55°C 9 A

400 V 55 °C 9 A

500 V 55 °C 8 A

690 V NO 55°C 5 A

230 V three phase 2.2 kW

400 V tre fasi 4 kW

500 V three phase 4 kW

690 V three phase, NO 4 kW

Circuito principale 20 A

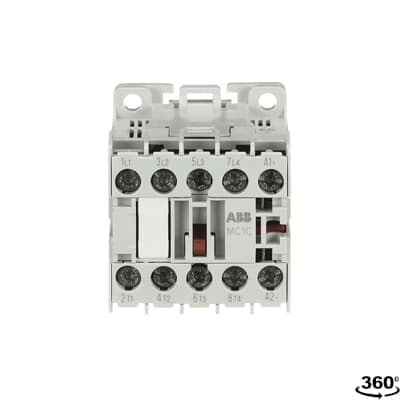

The MC1C400ATWL mini contactor is a dimension optimized 4 pole contactor with screw terminals. This device is a great solution when high performances are needed but the space is limited. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. The product is equipped with an extended operating limits coil and it's suitable for wall or rail mounting.
