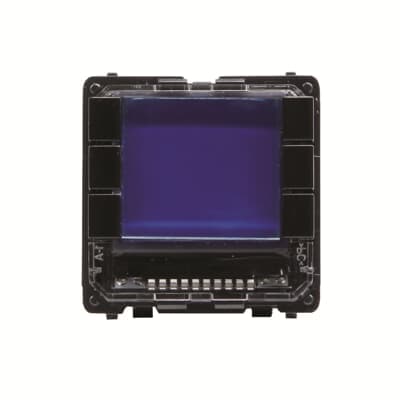

9368.2

64x76x76

Rated voltage: 127-230 Vac ± 15%; 50-60 Hz

Max. consumption: 15 mA

Stand-by consuption: 0,5W

To control 9368.1 module (1 remote control for each module)

Wireless connection between moles 9368.1 and 9368.2 (ZigBee 2.4GHz IEEE 802.15.4)

Optional: auxilary module 9368.3 for I/O (1 mini-jack stereo input & 1 mini-jack stereo output) and USB connection functions. In case of using 9368.3 module, the connection between modules 9368.1 and 9368.2 must be wired (3 wires)

Cover plate code: 8568, N2268, 8468, 8268 & 5568

In conformità alla direttiva UE 2011/65/UE e all'emendamento 2015/863 22 luglio 2019

IP20

0

0,078 kg

In funzione -5 ... +35 °C

230 V

Montaggio ad incasso
