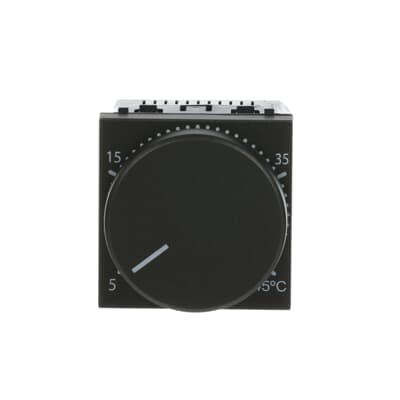

N2240.3 AN

44x44x52,1

Antracite

Color: Anthracite.

Rated voltage: 230 Vac ±10% / 50-60 Hz.

Load power: 2.300 W.

Load type: floor heating resistor.

Control temperature: +5ºC to +45ºC (Set point).

OFF state: at OFF position, the thermostat is off, so

that it does not address the temperature measured by

the floor temperature probe. The relay output contact

is open.

Temperature accuracy: 0,5º C.

Hysteresis: 0,5º C.

Floor temperature sensor: NTC, 10 KΩ at 25º C,

-40º C. to 80º C. Double isolated cable, 4 m. length.

LED light indication: Red and green.

Ambient temperature: -20º C to 45º C.

Size: 2 modules.

A seguito della direttiva 2011/65/UE e dell'emendamento 2015/863 22 luglio 2019

IP20

-20 … 45 °C

Plastica, termoplastica

1, 0

156 g

In funzione -5 ... +35 °C

Normalmente aperto - NO

Montaggio ad incasso
