LS43P41B11

130x41x59

1 NO, 1 NC

Secondo IEC 60947-5-1, q = 40 °C 10 A

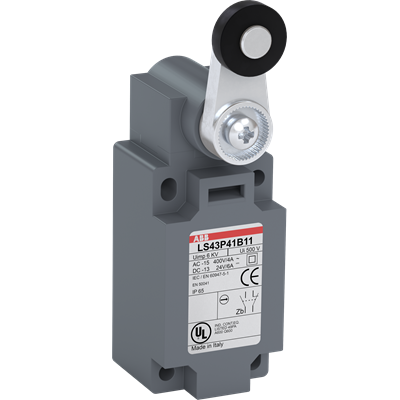

LS43P41B11 is a 40 mm wide, standard reinforced Limit Switch made of fiber-glass reinforced UL-V0 material, with 4 mounting holes at the top and bottom, 1 ISO M20x1.5 cable entry on the bottom, plastic roller lever (Ø22 mm) actuator and 1 N.O + 1 N.C snap action (Zb type) contacts

In conformità alla direttiva UE 2011/65/UE e all'emendamento 2015/863 22 luglio 2019

10 milioni

Secondo IEC 60529 IP65

AC-15 3600 cicli orari

DC-13 3600 cicli orari

IEC 60947-1, IEC 60947-5-1, EN 60947-1, EN 60947-5-1, UL 508 and CSA C22-2 N°14

Massimo 5 W

0,169 kg

-25 ... +70 °C

6 kV

Secondo IEC 60947-5-1 e VDE 0110 Gr. C 500 V

Secondo UL/CSA 600 V

Leva a rullo in plastica Ø22 mm

40 mm - EN 50041

LS40
