LS32P92B11

168x30x30

1 NO, 1 NC

Secondo IEC 60947-5-1, q = 40 °C 10 A

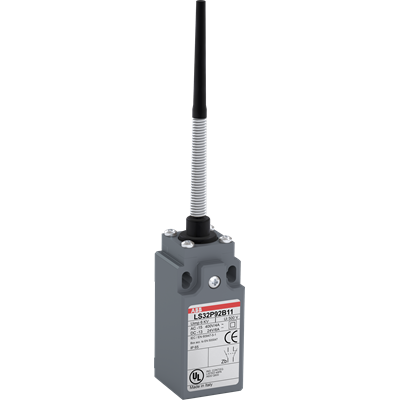

LS32P92B11 is a 30 mm wide, standard Limit Switch made of fiber-glass reinforced UL-V0 material, with 2 mounting holes at the top, 1 ISO M16x1.5 cable entry on the bottom, multidirectional stainless steel spring actuator with insulated tip and 1 N.O + 1 N.C snap action (Zb type) contacts

In conformità alla direttiva UE 2011/65/UE e all'emendamento 2015/863 22 luglio 2019

>5 milioni

Secondo IEC 60529 IP65

AC-15 3600 cicli orari

DC-13 3600 cicli orari

IEC 60947-1, IEC 60947-5-1, EN 60947-1, EN 60947-5-1, UL 508 and CSA C22-2 N°14
